product
Wireless remote transmission membrane gas meter（aluminium case）
Wireless remote transmission membrane gas meter is to collect the actual use data (gas volume, valve, battery) of gas meter by adding intelligent module, read the meter by wireless collector (PDA or Bluetooth collector), and finally upload it to the management system for unified management. The product has strong anti-interference, supports remote valve control and remote price adjustment.
Technical parameters
Basic technical parameters
Parameter nameCompanyModel and specification
RX01-W-G1.6
RX01-W-G2.5
Maximum flowm3/h2.5
4
Minimum flowm3/h0.016
0.025
Maximum working pressurekPa10
Maximum allowable value of pressure lossPa250
Maximum allowable error/                qmin≤q＜qt時，  ±3%
                qt≤q＜qmax時，  ±1.5%
TightnesskPa                Input air 1.5 times the maximum working pressure for three minutes without leakage
Long term operation performance/
It shall meet the requirements of national standard GB / t6968-2019 membrane gas meter after running for 5000h under the maximum flow
Service temperature  ℃-10~+40
Accuracy classGrade1.5
Motor valve lifeFrequency≥10000
Supply voltage/DC：3.6V lithium battery
Static working currentμA
≤5
FrequencyMHz470~510
Occupied broadbandkHz32

Wireless transmission power

dBm≤17

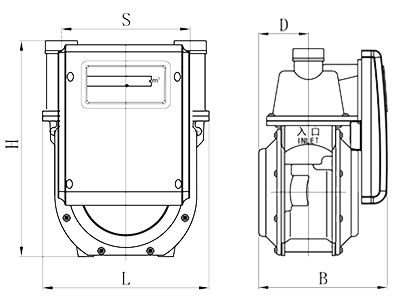

Dimension drawing：

Model / SizeM
SLBHDQuality（kg）

RX01-W-G1.6

RX01-W-G2.5

M30×2130
199
157
213
63
1.7
Product size
