Gas Turbine Flowmeter (Smart Single Display) RXTMS Series
The gas turbine flowmeter is the main product design summary of our company at home and abroad. After more than one year of research and development, the production technology has been further improved.It has excellent low pressure and high pressure metering performance, double flameproof design, hinged design of rear cover for easy maintenance.
It is suitable for accurate measurement of large flow gas and other gases. Turbine flow meters with different accuracy levels and different performance can be provided according to different needs of users.
Technical parameters
Model and specificationHtzy type nominal pressure:1.6/2.5/4.0MPa
DN
A
B
H
50
150
194/194/194
446/446/446
80
240
230/230/230
491/491/491
100
300
249/264/264
510/505/505
150
450
312/322/322
574/584/584
200
600
369/389/389
625/635/643
250
375
430/435/435
690/700/713
300
450
460/475/475
750/765/780

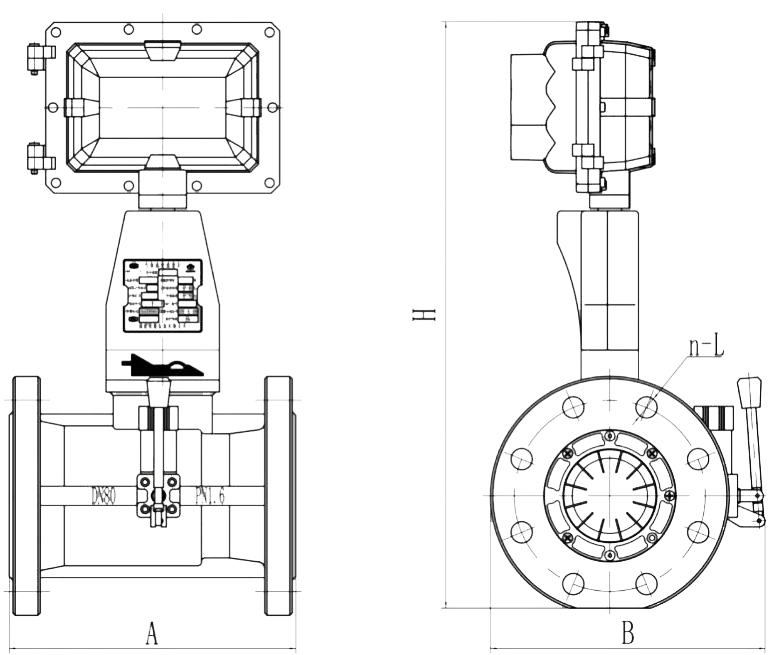

Product size
